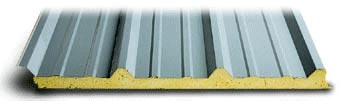

Insulated RWP Wall Panel



Insulated RWP Wall Panel

Product Description Designed to be used as a roof panel or a wall panel on metal building framing. IPS offers this product with overlapping ribs, exposed fasteners, and requires field applied sealant to inside joint of panel. The panel is designed to give 36″ coverage. The Tecfoam panels are filled with non CFC polyurethane modified isocyanurate with R-values up to 35.7. IPS panels are constructed of 22, 24, or 26 gauge steel, pre-painted sheets, in thicknesses of 1 1/2″, 2″, 2 1/2″, 3″, 4″, & 5″. All panels have passed extensive structural, and thermal testing. Gauges: Exterior: 22, 24, & 26 Interior: 22, 24, & 26 (interior face is stucco embossed and has a mesa pattern) – (22 gauge minimum order required). Finish: Rockwall Stone-Coated, Dura-20, Royal-K70, IPS Color ChartLengths: Max 48′ – 0 Fasteners: Exposed Screws Dimensions: Wide: 36″; Thick: 1 ?, 2, 2 ?”, 3″, 4″, & 5″

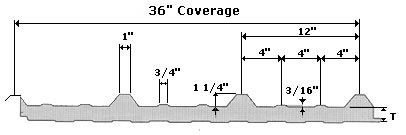

RWP Profile

Manufactured at: IPS – Stafford, Texas Usage: RWP is designed to be used as a roof panel or a wall panel on metal building framing. Limitations 1/2:12 minium roof slope. This panel does have exposed fasteners.
FeatureBenefit
Foam thickness of 1 ?” 2″, 2 ?”, 3″, 4″, & 5″R values from 12.2 – 35.7
Roof / Wall ApplicationProvides total uniformity of both dimensions & surface appearance utilizing a 3′-0″ Panel Module.
Overlapping panel joints with exposed fastener.Adds a sense of strength and boldness to the overall building structure.
